How to Build an Auditable Excel Model from AI-Extracted Data

Did you know that 94% of business spreadsheets used in corporate decision-making contain errors? This staggering reality makes knowing how to build an auditable Excel model from AI-extracted data one of the most critical skills a finance or data professional can develop in 2026. By following a structured data workflow from raw AI output to a fully traceable Excel model, you eliminate the guesswork, reduce risk, and produce work that holds up under scrutiny.

Key Takeaways

1. Why Auditable Excel Models Matter More Than Ever in 2026

Businesses increasingly rely on AI tools to extract data from PDFs, reports, and web sources. The speed is impressive, but the risk is real: if that data cannot be traced, validated, or explained to a reviewer, it creates significant liability.

Auditable financial modeling is no longer a best practice reserved for large enterprises. Regulators, investors, and internal governance teams now expect every number in a financial model to carry a clear lineage from source to cell. When you build an auditable Excel model from AI-extracted data correctly, you satisfy that requirement without sacrificing the speed advantage that AI provides.

The structured data workflow we outline below addresses this directly. It gives you a repeatable process that any team member can follow, review, and verify.

2. Step 1: Capturing and Standardising Raw AI Text Outputs

Before any data enters Excel, it exists as raw text. Whether your AI tool outputs a block of JSON, a plain-text summary, or a table pasted from a chatbot, your first job is to standardise the format.

Follow these rules for every AI extraction session:

• Record the extraction date and time. AI model outputs can change between sessions; a timestamp preserves what was retrieved and when.
• Copy the exact source URL or document filename. This becomes your Source Link in the next step.
• Note the specific section or page number from which the data was extracted. This granularity dramatically improves traceability.
• Flag any values that the AI prefixed with hedging language (for example, "approximately", "estimated", "as of"). These require a manual verification step before they enter your model.

Paste all raw outputs into a single plain-text staging document or a temporary Excel worksheet. Do not mix them directly into your calculation sheets yet. The separation between raw input and processed output is the foundation of the entire structured data workflow.

3. Step 2: How to Build an Auditable Excel Model Using a Dedicated 'Data Input' Sheet

The 'Data Input' sheet is the single most important architectural decision in this process. Every value that originated from an AI extraction lives here and only here. Calculation sheets pull from this sheet; they never hold their own hard-coded numbers.

Structure your Data Input sheet with the following columns as a minimum:

Once your columns are defined, convert the entire range into an Excel Table by pressing Ctrl + T. Name it something descriptive, such as tbl_DataInput. This single action is what prevents your model from breaking later when new rows are added.

4. Step 3: Creating the 'Source Link' Column for Full Audit Traceability

The Source Link column is the single most powerful element in building an auditable Excel model from AI-extracted data. Without it, a reviewer cannot independently verify whether a number is correct or whether the AI hallucinated it.

Here is the standard process for populating Source Links correctly:

1. Use the deepest-level URL possible. Link to the specific page, section anchor, or paragraph within a document rather than to a homepage. For PDFs, append #page=X to the URL where possible.
2. Use Excel's HYPERLINK function to make each link clickable directly from the cell: =HYPERLINK([@Source_Link], "Open Source"). This keeps the raw URL in the column while displaying a clean label.
3. Add a 'Link_Status' column that uses a simple dropdown (Valid, Broken, Needs Review) so reviewers can flag dead links during audits.
4. Never leave the Source_Link cell blank. If the data came from an AI tool that did not cite a source, enter the AI session log reference or prompt ID instead. A documented unknown is more defensible than an empty cell.

This approach directly addresses a critical governance reality: unlinked AI outputs are rejected by 70% of governance leaders as non-compliant with audit standards. A complete Source Link column removes that objection immediately.

5. Step 4: Using AI for Excel Formulas to Build Your Lookup Architecture

Once your Data Input sheet is structured, your calculation sheets need to pull values from it dynamically. This is where AI for Excel formulas delivers a concrete time advantage. Rather than manually writing XLOOKUP or INDEX/MATCH syntax for dozens of references, you can describe what you need to an AI tool and receive production-ready formula code instantly.

Here are the two formulas you need and how to prompt AI to generate them correctly.

Using XLOOKUP to Retrieve Values from tbl_DataInput

XLOOKUP is the preferred formula for this workflow because it searches any direction, handles missing matches gracefully, and uses column headers by name when referencing Excel Tables.

Prompt an AI tool with the following type of instruction:

"Write an Excel XLOOKUP formula that searches the Data_ID column in a Table named tbl_DataInput for the value in cell A5 on this sheet, and returns the corresponding Value from the Value column of that same table. If no match is found, return the text 'Data Missing'."

The AI will generate something like:

=XLOOKUP(A5, tbl_DataInput[Data_ID], tbl_DataInput[Value], "Data Missing")

This formula uses the Table's structured reference syntax. When you add new rows to tbl_DataInput, the formula's lookup range expands automatically because the Table grows with it.

Using INDEX/MATCH for Multi-Criteria Lookups

When you need to match on both Category and Description simultaneously, INDEX/MATCH handles the task cleanly. Prompt your AI tool as follows:

"Write an Excel INDEX/MATCH formula that returns the Value from tbl_DataInput where the Category column matches B2 AND the Description column matches B3."

The result is an array formula using the multiplication operator to combine two match conditions. Using AI for Excel formulas this way removes the risk of bracket errors and operator mistakes that make manual formula writing so time-consuming. Modern AI formula generators allow users to create complex Excel formulas up to 90% faster than manual syntax writing, making this step practical even for complex models with hundreds of lookup references.

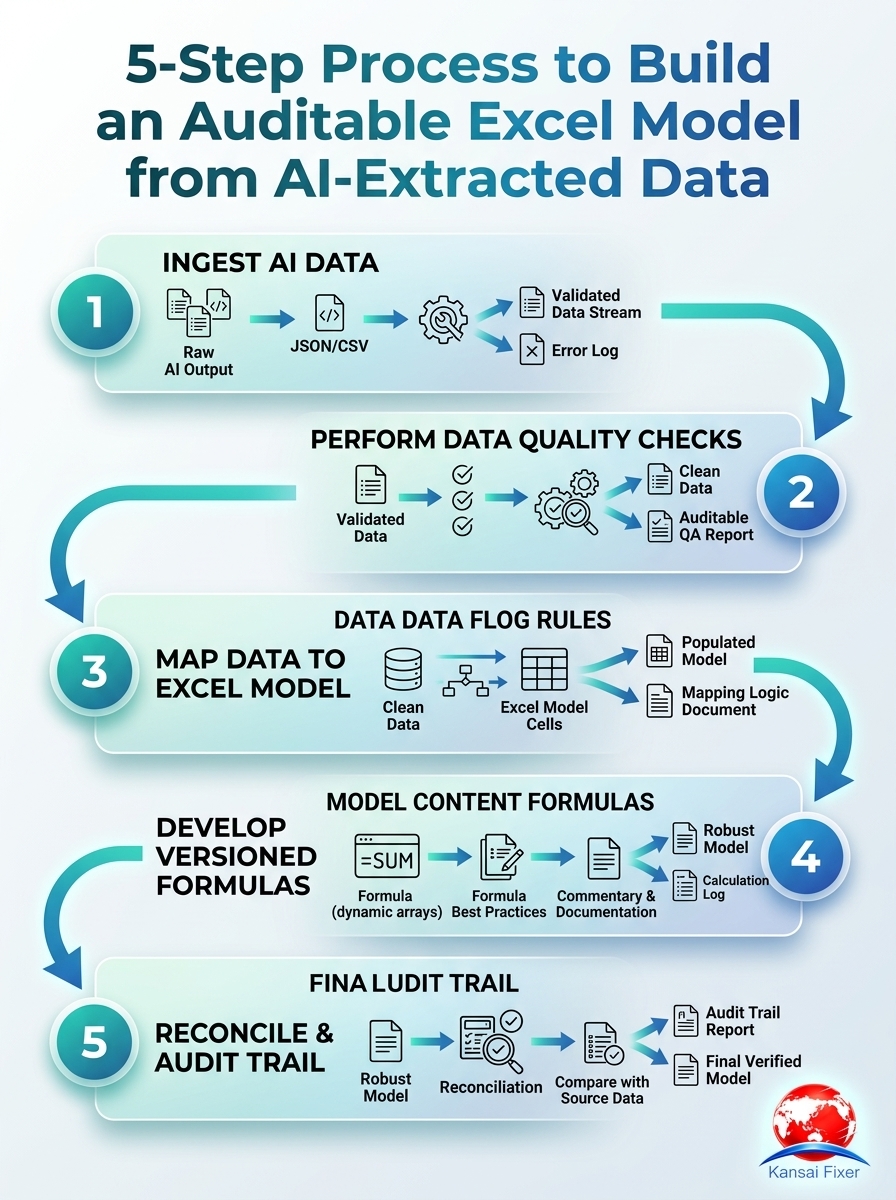

This infographic outlines a five-step approach to turning AI-extracted data into a traceable, auditable Excel model. It emphasizes validation, reproducibility, and clear data lineage.

6. Step 5: How to Build an Auditable Excel Model That Does Not Break When New Data Is Added

The most common reason Excel models fail in production is that they use static ranges. When someone adds a new row below the last data row, the formulas simply do not see it. Converting your input range to a named Table (as described in Step 2) solves this at the structural level.

Beyond the Table structure, apply these additional protections:

• Never use hardcoded row counts in formulas. Replace A2:A500 references with Table column references like tbl_DataInput[Value]. These expand automatically.
• Use dynamic named ranges as a fallback for any chart or pivot table that feeds from the Data Input sheet. Define them using OFFSET with a COUNTA count to capture all populated rows.
• Lock the column structure with sheet protection. Allow users to add rows but prevent column insertions or deletions that would break lookup references. Protect the sheet via Review > Protect Sheet, checking only the "Insert rows" permission.
• Build a 'Model Health' check row at the top of each calculation sheet that uses IFERROR wrappers and returns "OK" or "BROKEN" for each lookup. This gives any user an immediate visual status check.

This combination of Table-based referencing and structural protection creates a model that absorbs new AI-extracted data without any formula maintenance.

7. How to Build an Auditable Excel Model with a Validation Layer

A validation layer sits between the raw Data Input sheet and the calculation sheets. Its purpose is to catch data quality issues before they propagate into your outputs.

Build your validation layer as a separate worksheet called Data_Validation. Populate it with the following checks:

• Duplicate Data_ID check: Use =COUNTIF(tbl_DataInput[Data_ID], [@Data_ID]) > 1 to flag any repeated identifier.
• Blank Source_Link check: Use =IF([@Source_Link]="", "MISSING SOURCE", "OK") to ensure every row has a traceable origin.
• Numeric value check: Use =IF(ISNUMBER([@Value]), "OK", "NON-NUMERIC") to catch text strings that AI occasionally outputs in numeric fields.
• Date format check: Use =IF(ISNUMBER([@Extraction_Date]), "OK", "INVALID DATE") to confirm extraction dates are stored as real Excel date values.

Use conditional formatting to highlight any row where a validation check returns a non-OK status. Red fills on the Data_Validation sheet give reviewers an immediate at-a-glance health report on the integrity of the AI extraction.

8. Auditable Financial Modeling: Governance and Documentation Standards

Building the model correctly is only half the requirement. Auditable financial modeling also demands that the model be documented in a way that allows a third party to reproduce your results independently.

Include a Model_Documentation sheet as the first tab in every workbook. It should contain:

1. Model Purpose: A one-paragraph description of what the model calculates and for which decision it is used.
2. Data Sources Summary: A list of all AI tools used for extraction, including the tool name, version, and prompt template.
3. Sheet Architecture Map: A simple diagram or table showing which sheets feed which, so a reviewer can trace the flow without opening every tab.
4. Change Log: A table recording every update to the model with the date, description of change, and the person responsible.
5. Known Limitations: An honest disclosure of any data points that could not be verified from a primary source.

This documentation discipline directly addresses the governance confidence gap: only 30% of finance leaders feel confident in the governance and controls of the AI tools their teams currently use. A well-documented model provides the transparency that builds that confidence.

9. Using AI Tools to Accelerate the Entire Structured Data Workflow

The structured data workflow described in this guide benefits from AI assistance at multiple stages, not just formula generation. Here is where AI integration adds the most value in 2026.

AI-Assisted Data Parsing

Tools like ChatGPT, Claude, and Gemini can convert unstructured AI output text into structured table rows with a single prompt. Paste your raw extraction and ask the AI to output it as a pipe-delimited table matching your Data Input sheet column structure. Then paste that directly into Excel using Data > Text to Columns.

AI-Assisted Formula Generation

As covered in Step 4, AI for Excel formulas removes manual syntax errors. Native AI integration in Excel reduces manual formula work and troubleshooting by 30%, according to 2026 benchmark data. Microsoft Copilot in Excel takes this further by understanding the context of your Table names and suggesting the appropriate structured references automatically.

AI-Assisted Source Verification

Some AI tools can cross-check a data point against its stated Source Link automatically. While this does not replace human verification for high-stakes numbers, it can flag obvious mismatches (for example, a revenue figure that does not appear anywhere in the linked document) before the data enters your model.

For practical demonstrations of how professionals are building these workflows, the financial modeling best practices video library on YouTube contains hundreds of current tutorials covering Excel table architecture, dynamic ranges, and AI-assisted formula building.

10. Quality Control Checklist Before Sharing Your Model

Before distributing a model built from AI-extracted data, run through the following checklist. Every item must pass before the file leaves your control.

• Data Input sheet review: Every row in tbl_DataInput has a non-blank Source_Link value.
• Validation sheet review: The Data_Validation sheet shows zero rows flagged as non-OK.
• Formula audit: Use Formulas > Trace Precedents on at least three calculation cells to confirm they trace back to tbl_DataInput and not to hardcoded values.
• New row test: Add a test row to tbl_DataInput with a unique Data_ID, then confirm that the corresponding XLOOKUP formulas on your calculation sheets return the test value correctly. Delete the test row afterward.
• Link verification: Spot-check a random sample of five Source_Links by clicking them to confirm the target document or URL is still accessible.
• Documentation completeness: The Model_Documentation sheet has an updated Change Log entry for the current version.
• Sheet protection active: Confirm that the Data Input sheet is protected against column deletion and that the protection password is recorded in your team's password manager.

This checklist enforces the principles of auditable financial modeling at the point of delivery, not as an afterthought during a review.

Conclusion

Learning how to build an auditable Excel model from AI-extracted data is, fundamentally, about discipline in structure. The AI extraction step is fast. The risk sits in what happens between that raw output and the final calculated cell. By dedicating a 'Data Input' sheet with a mandatory Source Link column, using AI for Excel formulas to generate robust XLOOKUP and INDEX/MATCH references, converting all input ranges to named Tables, and documenting every decision in a Model Documentation sheet, you produce a model that survives new data, satisfies auditors, and earns the confidence of every stakeholder who relies on its outputs.

The structured data workflow in this guide is not complex. It is consistent. Consistency is what makes auditable financial modeling possible at scale, and it is what separates a model that gets approved from one that gets sent back for rework. Follow these steps once, and they become second nature for every AI-assisted model you build going forward.
